產品簡介
產品概述

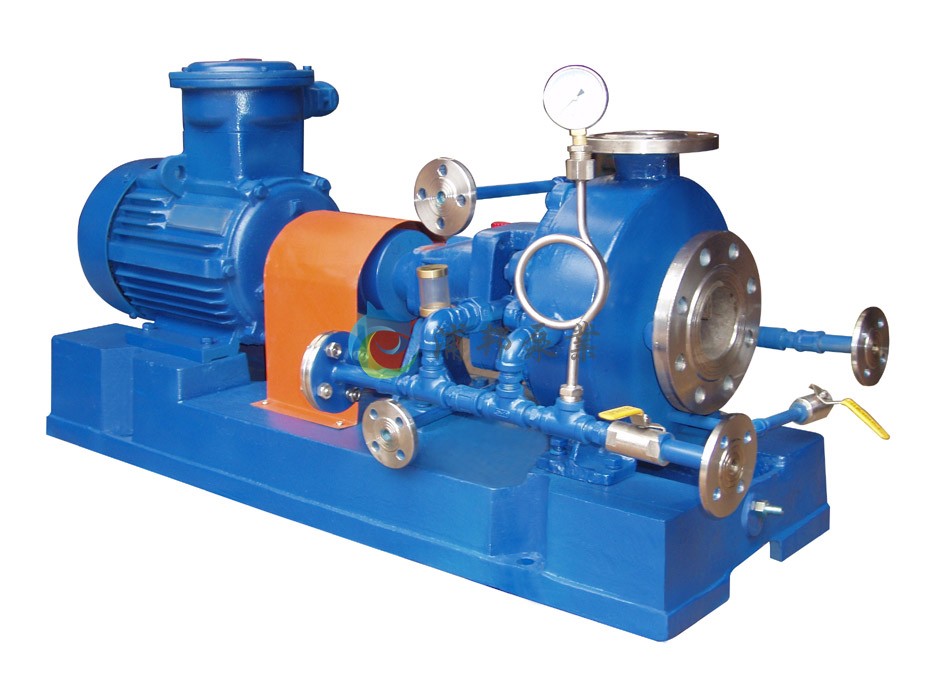

IR型保溫泵為單級單吸懸臂式離心泵系列，根據國際標準ISO2858進行設計的并按國際標準ISO5199/DIS制造的，是IH型化工離心泵的派生產品，零部件尺寸已實現標準化的節能高效產品，主要用于化工、化纖、石油、食品，制藥等行業輸送溶液介質凝固點（或結晶點溫度）高，具有腐蝕性的高溫液體。
產品特點
IR保溫化工泵主要過流部位設有空心夾層，并設有可供通蒸汽、熱水、熱油、汽水等輸送液和泵進行多重循環，保溫有多種方式與外界保溫系統聯接。設計壓力為1.6Mpa，溫度：T≤250℃。流量 3.4～460m3/h揚程：H=3.6～132m，轉速1450-2900r/min
產品用途
該泵適用于在常溫下有凝固結晶性的化工介質，適用于汽化點需冷卻的介質，也適用于高寒高原地帶介質溫度-80~+250℃輸送溶液介質凝固點（或結晶點溫度）高，具有腐蝕的液體。
產品優勢
性能參數
| 型號 | 進口← | 出口→ | 流量 | 揚程 | 配用電機 | 葉輪直徑mm | |||
| 泵進口-出口-葉輪(mm)(mm) | mm | mm | (m3/h) | (m) | 轉速r/min | 功率P | |||
| IR50-32-125 | 50 | 32 | 12.5 | 20 | 2900 | 2.2 | 125 | ||
| IR50-32-125 | 50 | 32 | 6.3 | 5 | 1450 | 0.55 | 125 | ||
| IR50-32-160 | 50 | 32 | 12.5 | 32 | 2900 | 3 | 160 | ||
| IH50-32-160 | 50 | 32 | 6.3 | 8 | 1450 | 0.55 | 160 | ||
| IR50-32-200 | 50 | 32 | 12.5 | 50 | 2900 | 5.5 | 200 | ||
| IR50-32-200 | 50 | 32 | 6.3 | 12.5 | 1450 | 0.75 | 200 | ||
| IR50-32-250 | 50 | 32 | 12.5 | 80 | 2900 | 11 | 250 | ||
| IR50-32-250 | 50 | 32 | 6.3 | 20 | 1450 | 1.5 | 250 | ||
| IR65-50-125 | 65 | 50 | 25 | 20 | 2900 | 3 | 125 | ||
| IR65-50-125 | 65 | 50 | 12.5 | 5 | 1450 | 0.55 | 125 | ||
| IR65-50-160 | 65 | 50 | 25 | 32 | 2900 | 5.5 | 160 | ||
| IR65-50-160 | 65 | 50 | 12.5 | 8 | 1450 | 0.75 | 160 | ||
| IR65-40-200 | 65 | 40 | 25 | 50 | 2900 | 11 | 200 | ||
| IR65-40-200 | 65 | 40 | 12.5 | 12.5 | 1450 | 1.1 | 200 | ||
| IR65-40-250 | 65 | 40 | 25 | 80 | 2900 | 15 | 250 | ||
| IR65-40-250 | 65 | 40 | 12.5 | 20 | 1450 | 2.2 | 250 | ||
| IR65-40-315 | 65 | 40 | 25 | 125 | 2900 | 30 | 315 | ||
| IR65-40-315 | 65 | 40 | 12.5 | 32 | 1450 | 4 | 315 | ||
| IR80-65-125 | 80 | 65 | 50 | 20 | 2900 | 5.5 | 125 | ||
| IR80-65-125 | 80 | 65 | 25 | 5 | 1450 | 0.75 | 125 | ||
| IR80-65-160 | 80 | 65 | 50 | 32 | 2900 | 7.5 | 160 | ||
| IR80-65-160 | 80 | 65 | 25 | 8 | 1450 | 1.1 | 160 | ||
| IR80-50-200 | 80 | 50 | 50 | 50 | 2900 | 15 | 200 | ||
| IR80-50-200 | 80 | 50 | 25 | 12.5 | 1450 | 2.2 | 200 | ||
| IR80-50-250 | 80 | 50 | 50 | 80 | 2900 | 30 | 250 | ||
| IR80-50-250 | 80 | 50 | 25 | 20 | 1450 | 4 | 250 | ||
| IR80-50-315 | 80 | 50 | 50 | 125 | 2900 | 45 | 315 | ||
| IR80-50-315 | 80 | 50 | 25 | 32 | 1450 | 5.5 | 315 | ||
| IR100-80-125 | 100 | 80 | 100 | 20 | 2900 | 11 | 125 | ||
| IR100-80-125 | 100 | 80 | 50 | 5 | 1450 | 1.5 | 125 | ||
| IR100-80-160 | 100 | 80 | 100 | 32 | 2900 | 15 | 160 | ||
| IR100-80-160 | 100 | 80 | 50 | 8 | 1450 | 2.2 | 160 | ||
| IR100-65-200 | 100 | 65 | 100 | 50 | 2900 | 30 | 200 | ||
| IR100-65-200 | 100 | 65 | 50 | 12.5 | 1450 | 4 | 200 | ||
| IR100-65-250 | 100 | 65 | 100 | 80 | 2900 | 45 | 250 | ||
| IR100-65-250 | 100 | 65 | 50 | 20 | 1450 | 5.5 | 250 | ||
| IR100-65-315 | 100 | 65 | 100 | 125 | 2900 | 75 | 315 | ||
| IR100-65-315 | 100 | 65 | 50 | 32 | 1450 | 11 | 315 | ||
| IR125-100-200 | 125 | 100 | 200 | 50 | 2900 | 45 | 200 | ||
| IR125-100-200 | 125 | 100 | 100 | 12.5 | 1450 | 7.5 | 200 | ||
| IR125-100-250 | 125 | 100 | 200 | 80 | 2900 | 75 | 250 | ||
| IR125-100-250 | 125 | 100 | 100 | 20 | 1450 | 11 | 250 | ||
| IR125-100-315 | 125 | 100 | 200 | 125 | 2900 | 110 | 315 | ||
| IR125-100-315 | 125 | 100 | 100 | 32 | 1450 | 18.5 | 315 | ||
| IR125-100-400 | 125 | 100 | 100 | 50 | 1450 | 30 | 400 | ||
| IR150-125-250 | 150 | 125 | 200 | 20 | 1450 | 18.5 | 250 | ||
| IR150-125-315 | 150 | 125 | 200 | 32 | 1450 | 30 | 315 | ||
| IR150-125-400 | 150 | 125 | 200 | 50 | 1450 | 55 | 400 | ||
| IR200-150-250 | 200 | 150 | 400 | 20 | 1450 | 37 | 250 | ||
| IR200-150-315 | 200 | 150 | 400 | 32 | 1450 | 55 | 315 | ||
| IR200-150-400 | 200 | 150 | 400 | 50 | 1450 | 90 | 400 | ||
| IR250-200-315 | 250 | 200 | 550 | 32 | 1450 | 75 | 315 | ||
| IR250-200-450 | 250 | 200 | 600 | 60 | 1450 | 160 | 450 | ||
